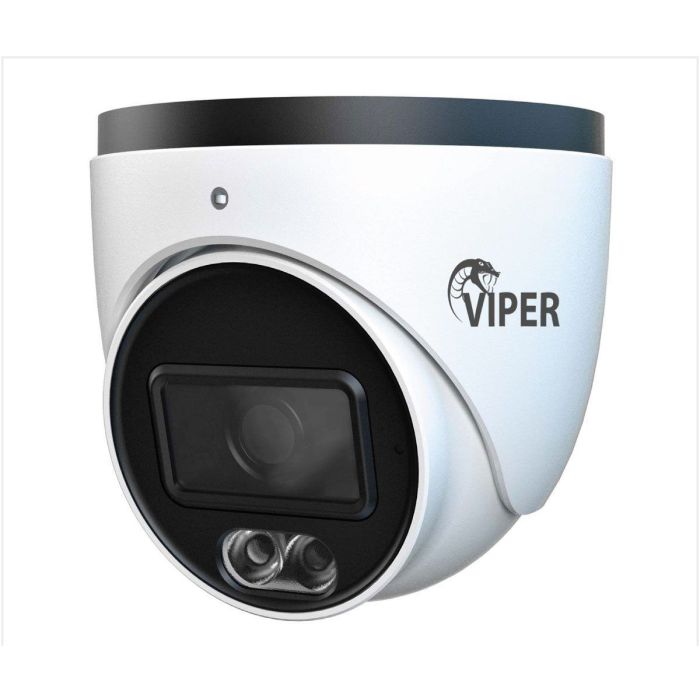

TURVIP-5C1-FW 5MP IP Network Full-Colour Turret Camera

Click here to view pdf specifications

Camera

Image Sensor: 1 / 2.7 “CMOS

Image Size: 2592 × 1944

Electronic Shutter: 1s ~ 1 / 100000s

Iris Type Fixed: Iris

Min. Illumination: 0 lux (LED ON)

S/N Ratio: ≥50dB

Lens: 2.8 mm @F1.6, Horizontal FoV: 94.8°; Vertical FoV: 78.4°; Diagonal FoV: 107.3°

Lens Mount: M12

Wide Dynamic Range: 120dB

BLC: Yes

HLC: Yes

Defog: Yes

Digital NR :3D DNR

Angle Adjustment: Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°


Video Compression: Main stream: H.265 / H.264;  Sub stream: H.265 / H.264 / MJPEG

H.264 Compression Standard: Baseline Profile / Main Profile / High Profile

Resolution: 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440),  3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240

Main Stream: 5MP/4MP/2K/3MP/1080P / 720P (60Hz : 1 ~ 30fps; 50Hz: 1~25fps)

Sub Stream: 720P/D1/CIF/480×240 (60Hz : 1 ~ 30fps; 50Hz: 1~25fps)

Third Stream D1/CIF/480×240: (60Hz : 1 ~ 30fps; 50Hz: 1~25fps)

Bit Rate: 64 Kbps ~ 6 Mbps

Bit Rate Type: VBR / CBR

Audio Compression: G711A / U

Image Settings: ROI, Saturation, Brightness, Chroma, Contrast,  Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser. ROI Each ROI to be configured separately

Interfaces

Network: RJ45

Video Output: No

Audio: 1CH audio input; 1 CH built-in MIC

Storage: Built-in micro SD card slot; up to 256GB

Hardware Reset: Yes

Intelligent Analytics (Smart Events)

Perimeter Protection: Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification)

Target Counting: Line crossing human/motor vehicle/non-motor vehicle

counting

Exception Detection: Scene change, video blur and video color cast detection

Face Detection: Face detection and face capture
