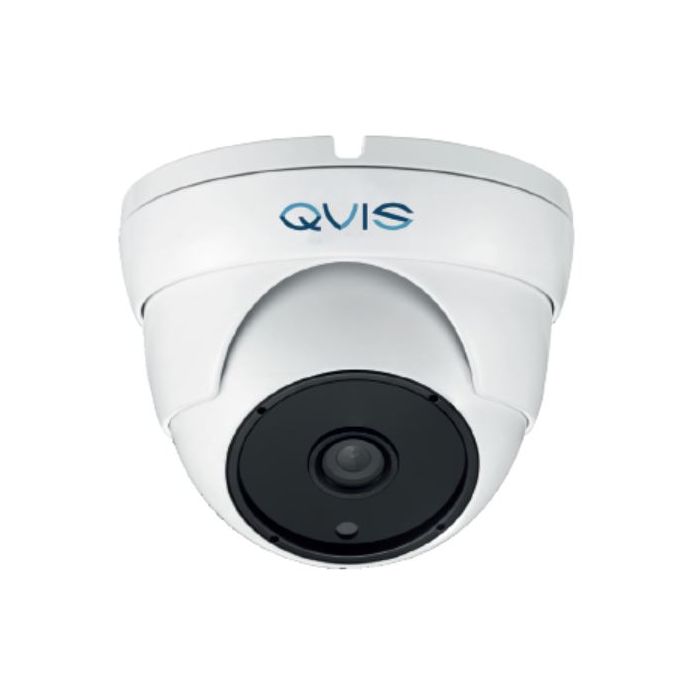

Q5-TUR-FW36 5MP 4-in-1 Turret Camera from QVIS
QVIS Mult-Format Coax Camera, works on all 5MP Coax recorders and even on older non-HD Recorders
Key Features:
- -Supports AHD/TVI/960H/CVI
- -2.8mm Fixed Lens
- -5MP Image
- -Up to 30m IR range
- -Black Glass Covered IR Housing
- -Digital Noise Reduction 0-15
From the trusted QVIS Brand
Click Here for PDF Specifications!
SPECIFICATIONS:
Model No. : Q5-TUR-FG36 / Q5-TUR-FW36
Image Sensor : 1/2.7” 5MP Low-light and Low-power image sensor
Signal System : PAL / NTSC
Active Pixels : 2688(H) ×1944(V)
Lens : 2.8mm Lens
Angle of View : H: 97°
Horizontal Resolution : 5MP @ 20 fps, 5MP @ 12.5 fps, 4MP @ 30fps/25fps/15fps
S/N Radio : >50 dB (AGC off)
Min Illumination : 0 Lux (IR ON - IR-cut technology)
Menu : UTC Control (the video output mode, can ONLY be selected by the dip switch cable)
Language : CHN / ENG
Auto Electronic Shutter : PAL:1/50 - 1/100,000 sec, NTSC:1/60 - 1/100,000 sec
Day / Night : Ext / Auto / Colour / B&W
White Balance : ATW / MWB
DNR : 1-15
D-WDR : ON / OFF
Video Output : CVBS / CVI / AHD / TVI (Factory Default is TVI)
Power Supply : DC12V±10%
Current Consumption : 80 mA (IR OFF), 320 mA (IR ON)
IR Led : 36 pcs
IR Distance in Effect : 25-30M
IP Rating : IP66
Storage Temperature : -50oC~+90oC
Operating Temperature : -30oC~+70oC
Dimension : Φ120*86mm
Weight : 800g
