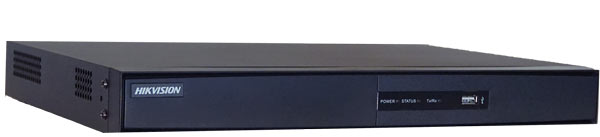

iDS-7216HQHI-K1/4S HIKVision HD 16 Channel CCTV Recorder with 4TB Hard Drive

iDS-7216HQHI-K1/4S Turbo HIKVision Full High Definition Recorder, easily connect your old analogue cameras, the latest High Definition cameras AND you can also add 4 extra IP Network cameras, making this a very versatile recorder. It also has P2P and DDNS built-in, so you no longer need a static IP address. This version comes with a large 4TB Hard drive. You need this large Hard Drive because the High Definition footage takes up a lot more space than traditional non-HD recorders.

This is the incredible iDS-7216HQHI-K1/4S Full High Definition Recorder from HIKVision, the World's largest CCTV manufacturer. With AcuSense Ai built-in with human & Vehicle detection.

A Great 16 Channel Recorder with a large 4TB Hard Drive. This recorder features H.265 compression, get more than twice as much recording time when compared to H.264 recorders, (basically, that's just about any recorder more than one year old).

This CCTV Recorder is capable of recording at 25 frames per second at 4MP HD quality, which is a High-quality standard, giving very sharp images. It also has a built-in HDMI Output, displaying a Full HD High-Definition picture on your big-screen TV for ultra-sharp viewing. Or you can simply plug it into any modern VGA monitor for ease-of-use. This is one of the only DVRs in this price range to have all this and PTZ capability, so you can happily zoom in your PTZ cameras using the recorder controls, or remotely over the internet using your PC, laptop, Mac or Smartphone. (You need to have a PTZ camera to do this). Yes, you can use this recorder to view your cameras on your smartphone or other device anywhere in the world.

 Click here for the Recorder Specifications.

This Recorder benefits from an excellent THREE YEAR WARRANTY.

Easily Setup  with the HIK-connect Mobile Remote Access

Sample Snapshots from HIKVision Full HD Turbo Recorder:

Click on each image for full size version

DS-7216HQHI-K1 SPECIFICATIONS:

• Recording
• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame Rate Main stream:, When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video Bit Rate 32 Kbps to 6 Mbps
• Dual Stream Support
• Stream Type Video, Video & Audio
• Audio Compression G.711u
• Audio Bit Rate 64 Kbps

• Video And Audio
• IP Video Input 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Inpu t16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input 1080p25, 1080p30, 720p25, 720p30
• CVBS Input PAL/NTSC
• Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback 16-ch
• HDTVI Input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
• VGA/HDMI Outpu tVGA: 1-ch, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,
• CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

• Network
• Remote Connections 128
• Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,

• Auxiliary Interface
• SATA 1 SATA interface
• Capacity Up to 10 TB capacity for each disk
• Alarm In/Out N/A
• USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
• Serial Interface RS-485 (half-duplex)

• General
• Power Supply 12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity 10% to 90%
• Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weights (Without HDD) ≤ 2 kg (4.4 lb)
• Consumption (Without HDD)  ≤ 25 W
