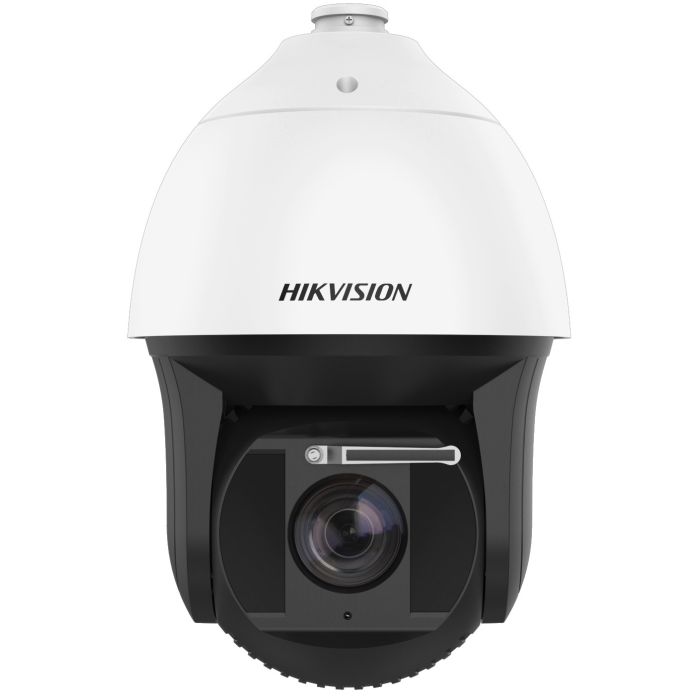

DS-2DF8250I5X-AEL(W)(B) 2MP 50x Network Smart IR DarkFighter Speed Dome

Camera

Image Sensor:

1/2.8" Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.05 Lux @(F1.5, AGC ON)
B/W: 0.01 Lux @(F1.5, AGC ON)
0 Lux with IR

AGC:

Auto/Manual

BLC:

ON/OFF

HLC:

Support

Smart defog:

Support

WDR:

120dB

Shutter Time:

50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s

Day& Night:

ICR

Digital Zoom:

16X

Privacy Masking:

24 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

Lens

Focal Length:

6.6 mm to 330 mm, 50× Optical

Zoom Speed:

Approx. 4.5 s (optical lens, wide-tele)

Angle of View:

Horizontal field of view: 41.3° to 1.1° (wide-tele)
Vertical field of view: 23.6° to 0.6° (wide-tele)
Diagonal field of view: 47.4° to 1.3° (wide-tele)

Minimum Working Distance:

10-1500mm(Wide-Tele)

Aperture Range:

F1.8~F5.5

Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s

Tilt Range:

-20°~90°(Auto Flip)

Tilt Speed:

Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

300

Patrol:

8 patrols, up to 32 presets per patrol

Pattern:

4 patterns, with the recording time not less than 10 minutes per pattern

Power-off Memory:

Support

Park Action:

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display:

ON/OFF

Smart-tracking:

Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger

Wiper:

Optional

Infrared

IR irradiation distance:

500m

IR irradiation angle:

Adjustable by zoom

Alarm

Alarm Input:

7 Inputs

Alarm Output:

2

Alarm Actions:

Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Main Stream:

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:

50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:

50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG

ROI encoding:

Support

Audio Compression:

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode:

OFF/Audio input/Audio output

No. of Simultaneous Users:

Up to 20 users

Three-Stream:

Support

Mini SD Card:

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Security Measures:

User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering

Client GUI

Camera Control:

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Date & Time Display:

Time: Week: Date, 6 formats on the Client

Client:

Support iVMS-4200

Web Browser:

IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +

General

RS-485 Protocols:

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power Consumption:

24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)

Working Temperature/Humidity:

-40°C ~ 65°C (-40°F ~ 149°F)

Protection Level:

IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions:

Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")

Weight (approx.):

8kg (approx.17.64lb)
