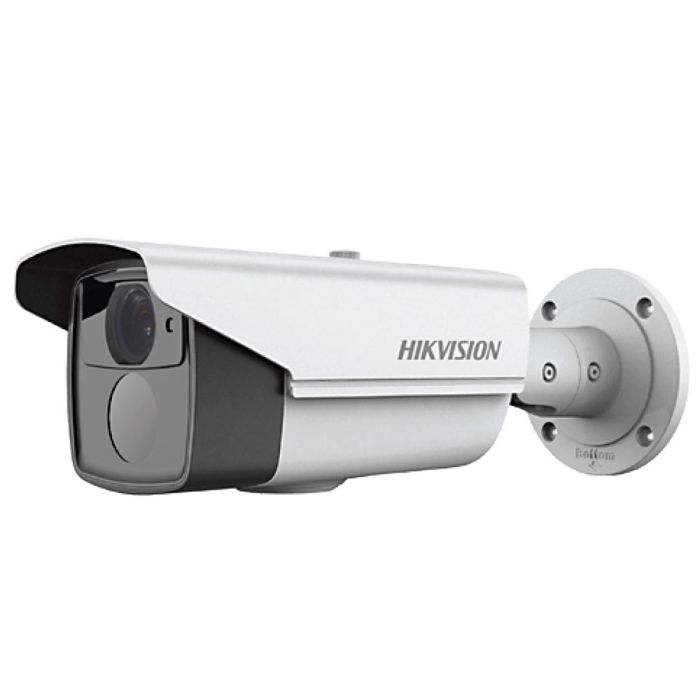

DS-2CE16D5T-AVFIT3 1080p Full HD Vari-focal Bullet camera 50m IR
In stock
SKU
DS-2CE16D5T-AVFIT3
Professional Full HD Bullet camera with Vari-focal 2.8-12mm lens.
This camera has two outputs, one for HD TVI Turbo and one standard composite, (CVBS), output for older recorders.
Professional Wide Dynamic Range camera to suit older analogue recorders and newer HD TVI DVRs.
• HD1080P Video Output
• Adopt HDTVI Technology
• True Day/Night
• 2.8 - 12mm vari-focal lens
• OSD menu, 3D DNR, Smart IR
• Up to 50m IR distance
• Up the Coax(via coaxial cable)
• 120 dB Wide Dynamic Range
Click here for the DS-2CE16D5T-A-VFIT3 PDF specifications:
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)*1080(V) |
| Min. Illumination: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 2.8-12mm @ F1.4 Angle of view: 92° - 32° |
| Lens Mount: | | | φ14 |
| Day& Night: | | | IR cut filter with auto switch |
| Video Frame Rate: | | | 1080p@25fps/1080p@30fps |
| Synchronization: | | | Internal Synchronization |
| Video Output: | | | 1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio: | | | More than 52dB |
| Up the Coax: | | | Support |
| Menu | ||
|---|---|---|
| Camera ID: | | | On/off (15 characters, position programmable) |
| Auto White Balance: | | | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask: | | | On/Off, maximum 8 zones |
| Motion Detection: | | | On/Off, maximum 4 zones |
| BLC: | | | On/Off |
| AGC: | | | Support |
| Anti-flicker: | | | On/ Off |
| Language: | | | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function: | | | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Scene: | | | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | ||
| Operating Conditions: | | | -20 °C - 60 °C (-4 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 V DC ± 10% (-A series support 24 V AC ± 10%, 12 V DC ± 10%) |
| Power Consumption: | | | 12 VDC: Max. 7W 24 VAC: Max. 8.5W |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 50m |
| Dimension: | | | 300.82×100.76×107.55mm(11.84”×3.97”×4.23”) |
| Weight: | | | 700 g (1.54 lbs) |
| Manufacturer | HIKVision |
|---|
