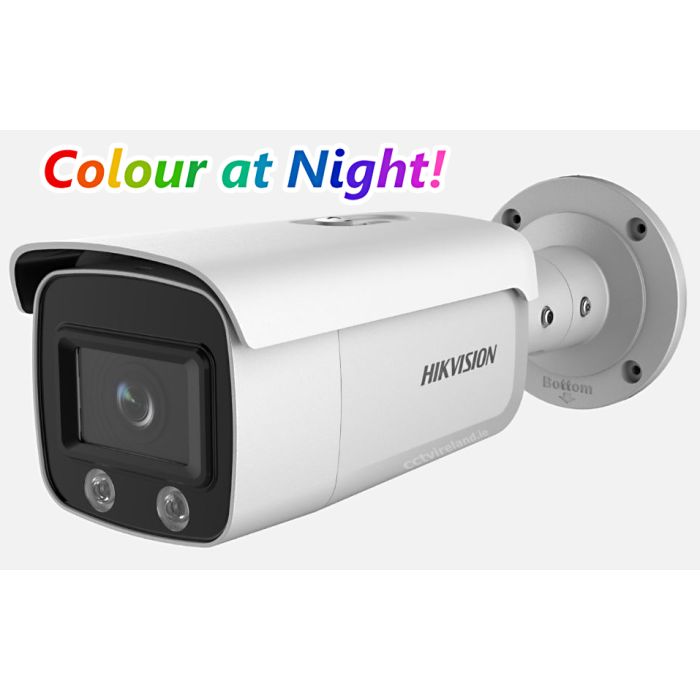

DS-2CD2T47G1-L 4MP ColorVu Fixed Bullet Network Camera with Colour At Night

Key Features:

• - Max. 2688 × 1520 @30fps
• - 2.8 mm/4 mm/6 mm fixed lens
• - H.265+, H.264+
• - 120dB WDR
• - 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
• - Built-in micro SD/SDHC/SDXC slot, up to 128G
• - IP67
• - 24/7 full time color

This camera uses the latest, never-seen-before technology, and is new on the market for 2020!

Click Here for the PDF Specifications!

SPECIFICATIONS:

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Min. Illumination0.0014 @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR3D DNR

Lens

• Lens2.8/4/6 mm
• ApertureF1.0
• FocusFixed
• FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138°; 4 mm, horizontal FOV: 94°, vertical FOV:48°, diagonal FOV: 115°; 6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV:67°
• Lens MountM16

Illuminator

• White Light RangeWarm white LEDs (3000K), up to 30m

Video

• Max. Resolution2688 × 1520
• Main Stream50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video CompressionMain stream: H.265+/H.265/H.264+//H.264, sub-stream: H.265/H.264/MJPEG, third stream: H.265/H.264
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps

Smart Feature-Set

• Behavior AnalysisLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Region Of InterestSupport 1 fixed region for main stream and sub stream separately
• Exception DetectionScene change detection
• Face DetectionYes


• Image EnhancementBLC/3D DNR/HLC
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchDay/Night
• Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)

Network

• Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users, 3 levels: Administrator, Operator and User
• ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
• Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view:Chrome 45.0+, Firefox 52.0+
• Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

General

• Firmware VersionV5.5.82
• General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• ResetYes
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3aF, class 3)
• Power Consumption And Current12 VDC, 0.7 A, max. 9.5 W, PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
• MaterialFront cover: metal, back cover: metal
• DimensionsCamera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4");With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
• WeightCamera: 1200 g (2.6 lb.); With package: 1800 g (4 lb.)
• Interface ProtectionIP67
