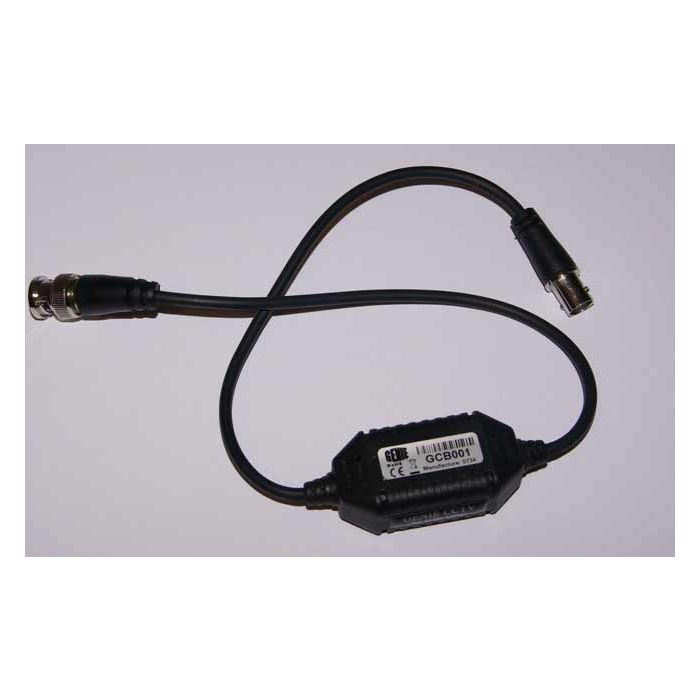

Video Ground Loop Isolator

SKU:Genie GCB01

Availability: Out of stock

Regular Price: €83.64

Special Price Excl. Tax: €29.00 Incl. Tax: €35.67

Quick Overview

The Genie Video Ground Loop Isolator is a passive device that can reduce Ground Loop Interference with composite video signals (Tearing).


It is used in situations where video signals are being transmitted between points with different ground potentials. Unbalanced power line loads typically cause differences in ground potentials. BNC male to BNC female with 150mm mini coax on both sides Passive no power required. Prevents video signal distortion caused by video ground loops Built in TVS (Transient Voltage Suppressor) for surge protection.

Details

The Genie Video Ground Loop Isolator is a passive device that can reduce Ground Loop Interference with composite video signals (Tearing).

It is used in situations where video signals are being transmitted between points with different ground potentials. Unbalanced power line loads typically cause differences in ground potentials. BNC male to BNC female with 150mm mini coax on both sides Passive no power required. Prevents video signal distortion caused by video ground loops Built in TVS (Transient Voltage Suppressor) for surge protection.

Technical Data:

Insertion Loss 0.5dB

Frequency Response 0-3dB at 10MHz

Input Resistance 75 ohms Output Resistance 75 ohms

Isolation Voltage 600VDC (Min)

Insulation Resistance 100M Ohms

Transient Voltage Suppressor 12V rms

Material ABS Black

(nb: for component video 3 of these will be required)

This device helps to eliminate picture tearing and erratic CCTV image behaviour.

Normally two Isolators are used, one at either end, but sometimes one is sufficient.

Additional Information

Manufacturer Genie
