8 Channel Mega-Pixel CCTV Recorder, (NVR), with a 4TB Hard Drive and 8 port POE power supply Built-in. From the very popular HIKVsion stable, a quality Network Video Recorder at an excellent price.
This recorder normally costs over €550 + VAT, so this is a very special price.
2TB version also available.
This is our most popular 8 Channel NVR! Installers love it for its easy and quick installation, with PoE built-in making it very easy to use - no separate power supplies needed!
• Third-party network cameras supported
• Up to 6 Megapixels resolution recording
• HDD quota and group management
• DS-7600NI-E2/8P series: support 4/8 independent network interfaces for built-in switch
The DS-7608-E2/8P has a built-in Webserver,so you can view our cameras where ever you are, on your smartphone or laptop. You can set it to notify you of activations via email. Easily setup remote viewing on your smartphone, tablet or PC. Free app, no monthly fees.
Here are some some of the features/ connection possibilites of this recorder:
The Rear-Panel Layout of the HIKVision NVR 1604 1TB Network Video Recorder, (not the eight):
- Network connection for internet
- PTZ Connector
- Mains Power Connector
- On/ Off Switch
- USB Connector
- Ground Connector
- HDMI Connector
- VGA Connector
- Audio In
- Audio Out
- Network Connections for cameras
This NVR has a built-in POE power supply, which means it powers all eight cameras from the actual recorder, just plug the network cable from the camera and it will automatically power the camera, it will automatically scan for cameras if you ask it to:
The Cameras plug directly into the rear of the recorder. This powers the cameras and brings the video picture back to the recorder - no need for a separate power supply. You just plug the network cable into the camera and then the other end of the cable plugs into the recorder - it's so simple! We can supply any lenght of CAT 5 network cable.

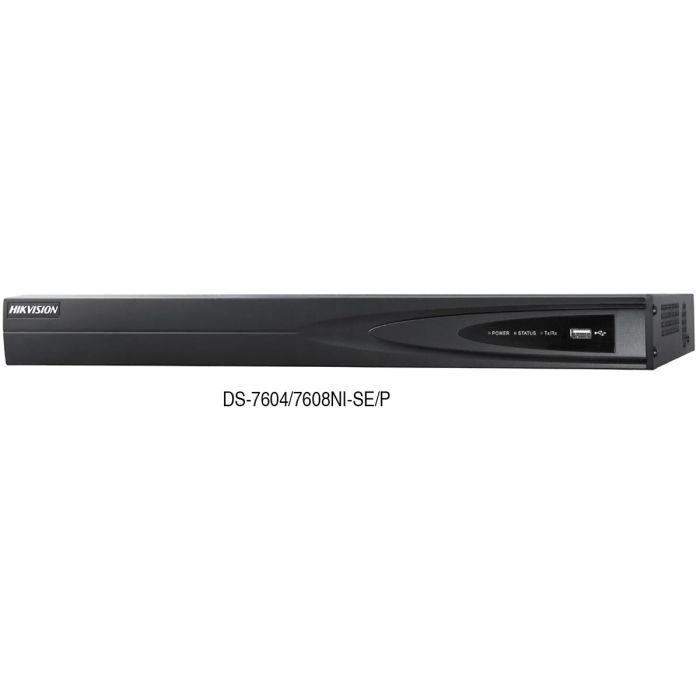

HIKVision DDS-7608NI-SE/P/8 2TB NVR Network Video Recorder
|Alarm Input/Output||4 / 1 (Optional)|
|Audio Output||1-ch, RCA (Linear, 1kΩ)|
|Dimensions||445 × 290 × 45mm (W × D × H)|
|IP Video Input||8-ch|
|Lan Ports||1 Lan Port|
|Network Interface||1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface|
|Operating Conditions||-10 ºC ~ +55 ºC 10 % ~ 90 % Working humidity 50W|
|Power Consumption||≤ 10W (without hard disk)|
|Power over Ethernet||8 independent 100 Mbps PoE network interfaces|
|Power Supply||220V AC|
|Resolution||Live view / Playback resolution: 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF|
|RS-485 Keyboard Support||No|
|Storage||Max 8TB 1 SATA interface for 1 HDD Up to 4TB for each disk|
|Two-way Audio Input||1-ch, RCA (2.0 Vp-p, 1k?)|
|USB interface||1 × USB 2.0 and 1 × USB 3.0|
|Weight||≤ 1 Kg (without hard disk)|
